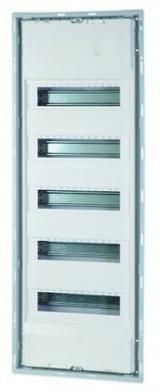

PROTEC.class 05105491 PUV 70-5N 5 row 70TE flush-mounted small distribution board

In stock
SKU: 549232
€127.28
Into a basketIn the basketGo

Overview

, For devices up to 63 A , With generous wiring space , Strain relief option at the top and bottom , Cable entries top / bottom: Break-out flange 200x50 mm , With plug-in terminal technology , Incl. metal door (powder-coated steel) , Incl. mounting bracket (PBWUV) , Ambient temperature: Min. -25°C, max. +40°C , Protection class: II protective insulation , Suitable for panel thickness: 10-45mm , Standards: DIN0603-1 DIN EN 61439-1 (VDE 0660-600-1) DIN EN 61439-3 (VDE 0660-600-3) DIN 43871 , Fire resistance (GWT) EN6095-2-10: 650°C , Rated voltage: 400 V , Can be arranged in series, can be sealed, silicone-free, PVC-free, heavy metal-free, niche dimensions: W 359 mm, installation height D+R 9 mm, plaster compensation 15 mm, 05104739 = H 393 mm05104740 = H 518 mm05104741 = H 643 mm05104742 = H 768 mm 05105491 = H 900 mm, material base and cover: PS-HI FR, equipment plug-in terminal:PUV 14-1N + PUV 28-2N: 1x PEKLN N/PE 3x25 mm, 14x4 mm PUV 42-3N + PUV 56-4N: 1x PEKLN N 3x25 mm, 14x4 mm and PEKLN PE 6x25 mm, 28x4 mm

Property Value
Number of rows: 5
Height: 900 mm
Width: 365 mm
Depth: 88 mm
Protection class (IP): IP30
Color: white
Mounting type: Flush-mounted
Material of Housing: Plastic

Characteristics

HABPUV 70-5N 5 rows 70HP
ManufacturerPROTEC.class
HAN05105491
GTIN4016705154913
Number of rows5
Width365 mm
ColorWhite
Height900 mm
Mounting typeFlush-mounted
IP protection)IP30
Depth88 mm
Housing materialPlastic
PROTEC.class 05105491 PUV 70-5N 5 row 70TE flush-mounted small distribution board
PROTEC.class 05105491 PUV 70-5N 5 row 70TE flush-mounted small distribution board
€127.28
