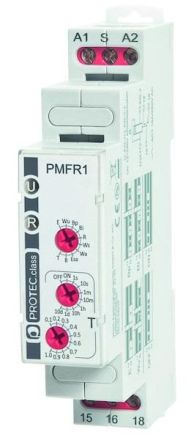

10 time functions. 8 time ranges. Cadmium-free contacts. Direct mounting on 35 mm rail in accordance with PN-EN 60715. For low-voltage systems. Max. contact voltage: 300 V. Nominal load PMFR1: - AC1: 16 A / 250 V AC - DC1: 16 A / 24 V DC - DC1: 0.3 A / 250 V DC. Nominal load PMFR2: - AC1: 8 A / 250 V AC - DC1: 8 A / 24 V DC - DC1: 0.3 A / 250 V DC. Nominal voltage: - 50/60 Hz Ac: 230 V / terminals A1 A2 - AC: 50/60 hz AC/DC: 12...240 V / terminals (+) A1, (-)A2. Rated power consumption: - AC: 3.5 VA 230 V AC, 50 Hz - DC: 1.5 W 12 ... 240 V AC/D. Max. switching capacity AC1: 2,000 VA. PMFR 1 Continuous current carrying capacity of the contact: 16 A / 250V AC. PMFR 2 Continuous current carrying capacity of the contact: 8 A / 250V AC. Min. switching capacity: 1 W 10 mA. Max. switching frequency: 600 cycles/h (in category AC1). Rated insulation voltage: 250 V AC. Overvoltage category: III. Dimensions: 90 x 17.5 x 64.5 mm.
