PROTEC.class 05105788 PMID 400V/16A, 1.5m H07RNF 5G2.5 electricity meter

In stock
SKU: 769603
€405.95
Into a basketIn the basketGo

Overview

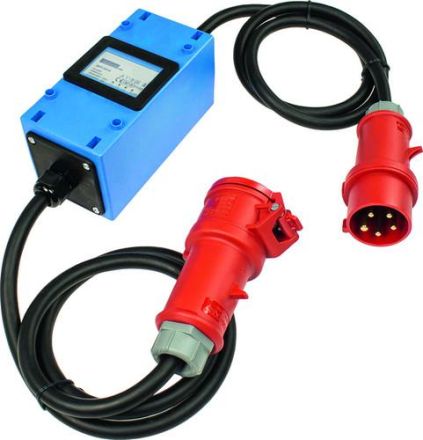

Integrated electricity meter, 3-phase. With CEE plug and CEE coupling. With heavy rubber hose cable: 2 x 1.5 m H07RN-F 5G2.5. Roller counter: MID compliant (MID compliant 2014/32/EU, calibrated in accordance with the requirements of the calibration supervisory authority). Roller counter cannot be reset to 0. 5-pin, approx. 11 kW. Current 0.25-5 A (max. 80 A). Analogue display 6+1 digits, readable at any time. Display for max. 99,999.9 kWh. Housing made of highly break-resistant special plastic. Operating temperature from -25 °C to +55 °C. Easy to set up. Approved for construction sites and agricultural operations.

Property Value
Calibrated: yes
Display type: analog
Mounting type: Intermediate plug
Accuracy class: B
Protection class (NEMA): 1
Maximum current (Imax): 16 A
Nominal voltage (Un) NL: 400 V
Protection class (IP): IP44

Characteristics

Maximum current (Imax)16 A
Accuracy classB
HABPMID 400V/16A, 1.5m H07RNF 5G2.5
ManufacturerPROTEC.class
HAN05105788
GTIN4016705157884
Mounting typeAdapter plug
IP protection)IP44
Protection class (NEMA)1
PROTEC.class 05105788 PMID 400V/16A, 1.5m H07RNF 5G2.5 electricity meter
PROTEC.class 05105788 PMID 400V/16A, 1.5m H07RNF 5G2.5 electricity meter
