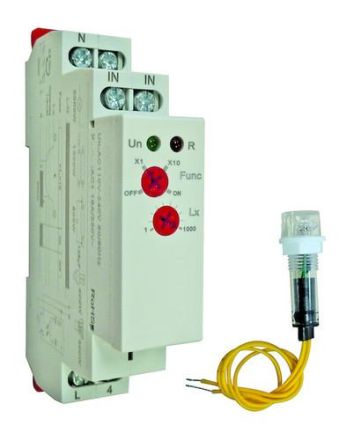

PROTEC.class 05106357 PDSL10000LX with separate light catcher twilight switch

In stock
SKU: 835640
€51.55
Into a basketIn the basketGo

Overview

, Twilight switch , General applications: street lighting and garden lighting, lighting of advertisements, shop showcase, etc. , Used to control lights based on the ambient light intensity , The ambient intensity is monitored by an external sensor and the output is switched according to the set adjustment range on the device , Two light intensity ranges can be set , Zero crossing circuit , Operating voltage: 110V-240V AC , Relay status is indicated by LED , Width: 18mm , DIN rail mounting

Feature Value
Rated voltage: 230 V
Max. incandescent lamp load: 2000 W
Max. fluorescent lamp load: 900 VA
Max. fluorescent lamp load (parallel compensated): 1000 VA
Rated switching current: 16 A
Brightness value setting range: 1 to 10000 lx
With programmable night-time switch-off: no
Button input: no
Max. Cable length of light sensor: 50 m
Mounting type of light sensor: other
Mounting type: DIN rail
Width in modular units: 1
Installation depth: 64 mm
Protection class (IP): IP40
Protection class (IP) of light sensor: IP65
Max. Switching capacity LED: 300 W

Characteristics

Max. fluorescent lamp load900 VA
HABPDSL10000LX with separate light catcher
ManufacturerPROTEC.class
HAN05106357
GTIN4016705163571
Rated voltage230V
Width in pitch units1
Installation depth64 mm
Mounting typeDIN rail
IP protection)IP40
