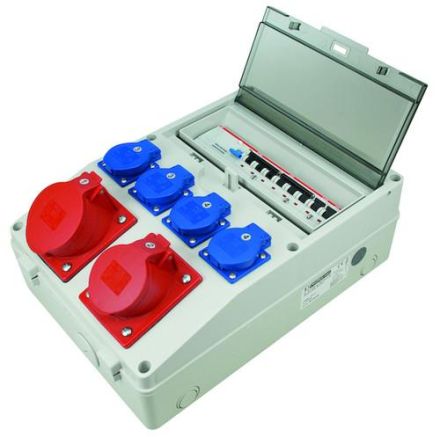

PROTEC.class 05106359 PWV4u2 4-way 2-way CEE with fuse wall distributor

In stock
SKU: 834079
€417.90
Into a basketIn the basketGo

Overview

, Robust and impact-resistant housing made of high-quality ABS plastic, Protective switching devices under lockable, impact-resistant polycarbonate cover, Sockets with self-closing hinged lids made of impact-resistant polyamide 6, Equipment (output) hinged lid sockets: 1 x CEE 32 A, 400 V~ / 1 x CEE 16 A, 400 V~ / 4 x socket 230 V~, Fuse (ABB): 1 x LS 32 A, 3-pole C / 1 x LS 16 A, 3-pole, C / 2 x LS 16 A, 1-pole, C (each protects two earthed sockets) [with residual current device 40 A, type A, 400 V~, 4-pole, 0.03 A across all outlets], Input: Can be implemented from above or below via cable gland M32 at the top (Blind screw connection M32 below), Color of the sockets: 4x blue (protective contact hinged lid socket) / 2x red (CEE 16A / 32A hinged lid sockets), individually tested according to DGUV-V3

Property Value
CEE socket - 16 A: 1x16A5p400V
CEE socket - 32 A: 1x32A5p400V
CEE socket - 63 A: without
CEE socket - 125A: without
SCHUKO sockets: 4
Width: 260 mm
Height: 162 mm
Depth: 370 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Handling: Wall mounting
Housing material: Plastic
Protection class (IP): IP54
Military version: no
Color: gray
Residual current type: A
Cable entry diameter: M32

Characteristics

HABPWV4u2 4-way 2-way CEE with fuse
ManufacturerPROTEC.class
HAN05106359
GTIN4016705163595
Width260 mm
ColorGray
Residual current typeA
Height162 mm
Military versionNo
IP protection)IP54
Depth370 mm
Housing materialPlastic
PROTEC.class 05106359 PWV4u2 4-way 2-way CEE with fuse wall distributor
PROTEC.class 05106359 PWV4u2 4-way 2-way CEE with fuse wall distributor
€417.90
Into a basketIn the basketGo
