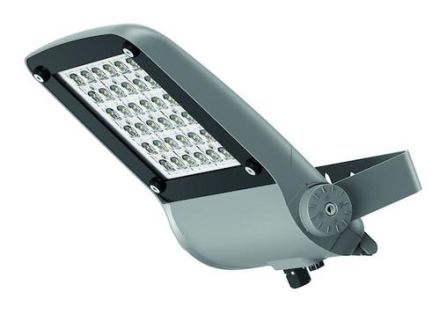

PROTEC.class 05400750 PLEDFS100 100W 4000K LED spotlight

PROTEC.class 05400750 PLEDFS100 100W 4000K LED spotlight

In stock

SKU: 837537

Price on request

€234.47

€0

Overview

, LED multiwatt and multilumen spotlights, power and luminous flux adjustable in 3 levels using a slide switch, overvoltage protection: 10kV, locking tilt adjustment, membrane for automatic pressure equalization, light output: asymmetrical, with wall brightening, service life: approx. 50,000 h / L70, housing material: die-cast aluminum, housing color: gray (RAL9007)

Property	Value
Length:	405 mm
Width:	282 mm
Height/depth:	73 mm
System power:	100 W
Luminous flux:	12000 lm
Color temperature:	4000 K
Nominal voltage:	230 V
Housing color:	Aluminum
With light source:	yes
Light source:	LED not replaceable
Protection class (IP):	IP66
Protection class:	I
Impact resistance:	IK08
Color rendering index CRI:	80-89
Adjustable optics:	no
Cover material:	transparent plastic
Housing material:	aluminum
Remote control:	without
Constant luminous flux control:	yes
Light color:	white
With connection cable:	no
With radio control:	no
With program-controlled light control:	no
Surface protection:	powder-coated
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Luminaire luminous efficacy:	120 lm/W
Replaceable operating device:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABPLEDFS100 100W 4000K

Manufacturer

HAN05400750

GTIN4016705407507

Replaceable operating deviceNo

Rated lifetime L70/B50 at 25 °C50000 hours

Width282 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Remote controlWithout

Housing colorAluminum

Height/Depth73 mm

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlYes

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light colorWhite

Luminous flux12000lm

Length405 mm

With connection cableNo

With radio controlNo

With light sourceYes

With program-controlled lighting controlNo

Nominal voltage230V

Surface protectionPowder coated

Without dimming functionYes

Impact resistanceIK08

IP protection)IP66

Protection classI

System performance100W

Cover materialPlastic transparent

Housing materialAluminum
