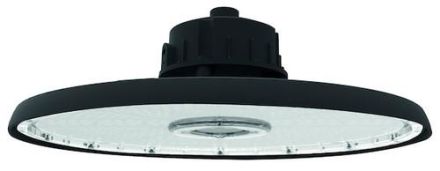

PROTEC.class 05400790 PLEDHTS160 160W LED high bay light

PROTEC.class 05400790 PLEDHTS160 160W LED high bay light

In stock

SKU: 840173

Price on request

€308.36

€0

Overview

, Round LED multiwatt and multilumen high bay spotlight with 1.5m connection cable H05RN-F 3G1.0mm2 for suspended installation as a single light, lighting of warehouses, production facilities, damp rooms, trade fair and exhibition halls, one-point suspension on centrally mounted ring eyelet (included in delivery), frequency: 50/60Hz, light color: neutral white, beam angle: 120°, service life: 50,000 hours, special feature: D-mark (certified according to EN 60598-2-24), light connection cable: 1.5 m (H05RN-F 3G1.0 mm², chain and fall protection not included in delivery, weight: 2.5 kg

Property	Value
Max. system power:	160 W
Luminous flux:	25000 lm
Protection class:	I
Impact resistance:	IK09
Protection class (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Light source:	LED not replaceable
Length:	400 mm
Width:	400 mm
Height/depth:	122 mm
Socket:	without
With light source:	yes
Nominal voltage:	100 to 277 V
Beam angle:	extremely wide beam >80°
DALI dimming:	no
Light color:	white
With control gear:	yes
Voltage type:	DC
Suitable for emergency lighting:	no
Housing material:	aluminium
Mounting type:	pendant
With protective cover:	yes
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	yes
Color rendering index CRI:	80-89
Light distribution:	asymmetrical
Suitable for secondary lamps:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming potentiometer (device-integrated):	no
Dimming line switch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Rated ambient temperature according to IEC 62722-2-1:	-20 to 50 °C
Outer diameter:	400 mm
Conductor cross-section:	1.0 mm²
Replaceable operating device:	no
Max. number of luminaires circuit breaker B16:	8
Max. number of luminaires circuit breaker C16:	13

Characteristics

HABPLEDHTS160 160W

Manufacturer

HAN05400790

GTIN4016705407903

Replaceable operating deviceNo

Outer diameter400 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 50 °C

Width400 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorBlack

Height/Depth122 mm

Conductor cross-section1.0 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes

LampsLED not replaceable

Light colorWhite

Luminous flux25000lm

Light distributionAsymmetrical

Length400 mm

Max. number of luminaires Circuit breaker B168

Max. number of luminaires Circuit breaker C1613

Max. system performance160W

With operating deviceYes

With light sourceYes

With protective coverYes

Mounting typePendulum

Nominal voltage100 to 277 V

Without dimming functionYes

Impact resistanceIK09

IP protection)IP65

Protection classI

Voltage typeDC

Housing materialAluminum
