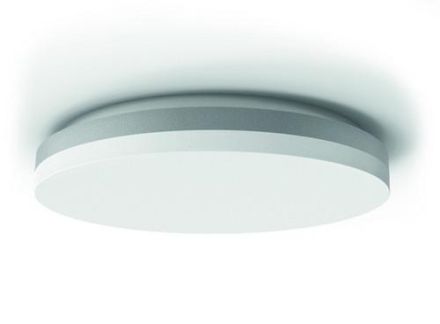

PROTEC.class 05400801 PLEDALRS15W 220mm silver LED ceiling light

PROTEC.class 05400801 PLEDALRS15W 220mm silver LED ceiling light

In stock

SKU: 896806

Price on request

€69.17

€0

Overview

, System power: 10 / 15 W , Luminous flux: 1,100 lm at 10 W / 1,700 lm at 15 W (adjustable using slide switch) , Color temperature: 4,000 K (neutral white) / 3,000 K (warm white) (adjustable using slide switch) , Not dimmable , Multiwatt and multilumen , Operating voltage: AC 230 V / DC 186 - 260 V , Frequency: 50 Hz , Beam angle: 110° , Color rendering: CRI>80 , Housing material: Polycarbonate , Protection class: IP20 (wall mounting) / IP54 (ceiling mounting) , Service life: 40,000 hours / L80 , Two rear cable entries for through-wiring , Plug connector between wall mount and luminaire body , Quick connection using plug connector terminal , Quick assembly thanks to removable wall bracket, surface and flush-mounted cable feed possible

Property	Value
System power:	15 W
Luminous flux:	1700 lm
Width:	220 mm
Height/depth:	53 mm
Protection rating (IP):	IP54
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	silver
Housing material:	plastic
Color temperature:	3000 to 4000 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	220 mm
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Cover material:	Plastic matt/satin
Light distributor:	other
Installation height/depth:	53 mm
Without dimming function:	yes
Installation width:	190 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	multicolored
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push-button:	no
Suitable for lamp power:	10 to 15 W
Luminaire luminous efficacy:	110 lm/W
Surface protection housing:	untreated
Replaceable operating device:	no
Dimming DALI-2:	no
Max. Number of lights circuit breaker B16:	227
Integrated emergency power supply:	no
Adjustable color temperature:	Levels
Adjustable luminous flux:	Levels
Adjustable beam angle:	no

Characteristics

HABPLEDALRS15W 220mm silver

Manufacturer

HAN05400801

GTIN4016705408016

Covering the luminaire with thermal insulation material possibleNo

Execution of the gridFrosted

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter220 mm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width220 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width190 mm

Installation height/depth53 mm

Color temperature3000 to 4000 K

Color temperature adjustableStages

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power10 to 15 W

Suitable for light strip configurationNo

Suitable for pendulum suspensionNo

Housing colorSilver

Height/Depth53 mm

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorMulticolored

Luminous flux1700lm

Luminous flux adjustableStages

Light distributorOther

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B16227

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Impact resistanceIK10

IP protection)IP54

Protection classII

Voltage typeAC/DC

System performance15W

Cover materialPlastic matt/satin

Housing materialPlastic
