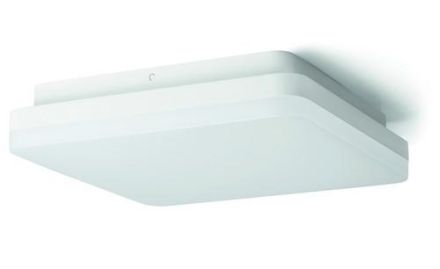

PROTEC.class 05400805 PLEDALQW38W 400mm square white LED ceiling light

PROTEC.class 05400805 PLEDALQW38W 400mm square white LED ceiling light

In stock

SKU: 896810

Price on request

€171.55

€0

Overview

, System power: 29 / 38 W , Luminous flux: 3,200 lm at 29 W / 4,200 lm at 38 W (adjustable using slide switch) , Color temperature: 4,000 K (neutral white) / 3,000 K (warm white) (adjustable using slide switch) , Not dimmable , Multiwatt and multilumen , Operating voltage: AC 230 V / DC 186 - 260 V , Frequency: 50 Hz , Beam angle: 110° , Color rendering: CRI> 80 , Housing material: Polycarbonate , Protection class: IP20 wall mounting / IP54 ceiling mounting , Service life: 40,000 hours / L80 , Two rear cable entries for through-wiring , Plug connector between wall mount and luminaire body , Quick connection using plug connector terminal , Quick assembly using removable wall bracket, Surface-mounted cable feed and flush-mounted possible

Property	Value
System power:	38 W
Luminous flux:	4200 lm
Length:	400 mm
Width:	400 mm
Height/depth:	63 mm
Protection type (IP):	IP54
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	white
Housing material:	plastic
Color temperature:	3000 to 4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	400 mm
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Cover material:	Plastic matt/satin
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	white
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	110 lm/W
Surface protection housing:	untreated
Replaceable operating device:	no
Dimming DALI-2:	no
Integrated emergency power supply:	no
Adjustable color temperature:	Levels
Adjustable luminous flux:	Levels
Adjustable beam angle:	no

Characteristics

HABPLEDALQW38W 400mm square white

Manufacturer

HAN05400805

GTIN4016705408054

Covering the luminaire with thermal insulation material possibleNo

Execution of the gridWhite

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter400 mm

Suitable for computer workstations according to EN 12464-1No

Width400 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000 to 4000 K

Color temperature adjustableStages

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth63 mm

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4200lm

Luminous flux adjustableStages

Light distributionSymmetrical

Length400 mm

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Emergency power supply integratedNo

Surface protection housingUntreated

Without dimming functionYes

Impact resistanceIK08

IP protection)IP54

Protection classII

Voltage typeAC/DC

System performance38W

Cover materialPlastic matt/satin

Housing materialPlastic
