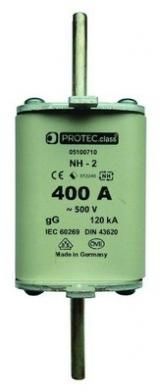

Low-voltage high-performance fuse. According to DIN0636 Part 201, DIN 43620 and DIN EN/IEC 60269-1 and DIN EN/IEC 60269-2. Live metal grip lugs with hinged indicator, except item no.: 05103592, ID no. 054118 with combination core indicator. Selectivity factor: 1.6. Operating class (gL)-gG: Full-range fuse links (for cable and line protection) for general applications. Rated voltage: 500 V. Rated breaking capacity: AC: 120 kA, DC: 80 kA. Rated frequency: 45-62 Hz. Insulating body made of steatite/cordierite. One-piece full-contact blades with surface treatment, lead-free. Anti-magnetic cover plate made of aluminum alloy. Copper fusible conductor. Width: 51 mm
