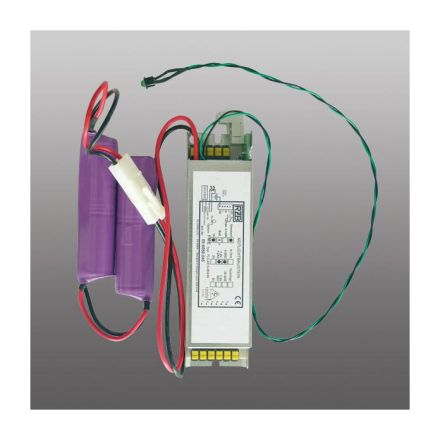

RZB 09-6287.000 6-80W Stest o. FM m. Akku 3h emergency light module

In stock
SKU: 529443
€124.52
Into a basketIn the basketGo

Overview

Device for: Fluorescent lamps 6, 80W, Options: Self-test without feedback LED display two-color with battery with housing with LED mounting clip Operating mode: Standby mode Continuous mode Nominal operating time: 3 h Universal emergency light device for fluorescent lamps with 4-pin base. Consists of emergency light electronics in a metal housing and maintenance-free NiCd battery. Lamp operation optionally in continuous or standby mode. Optical function monitoring via LED. With automatic self-test. For use in systems according to 0108-100 and EN 50172. Suitable for fluorescent lamps:, T26: all up to and including 70W,, T16: all up to and including 80W,, TC-SEL: from 7W, up to and including 11W,, TC-L: all up to and including 55W,, TC-DEL: all up to and including 26W,, TC-TEL: all up to and including 32W,, TC-DD: all from 16W, up to and including 28W,, T16-R: all from 22W, up to and including 55W, U: 230, 240 VF: 50, 60Hz Battery type: NiCd battery Battery voltage: 4.8 V Battery capacity: 4.5 Ah Protection class: I Protection type: IP20 L: 180mm W: 40mm H: 28mm LA: 172mm Assembly: with screws D4 Cable connection: with plug-in terminal

Property Value
Power: 80 W
Light source: Discharge lamps
With remote switch connection: no
Rated voltage: 230 to 240 V
Circuit type: Maintained operation/standby operation
Protection class: I
Monitoring device: automatic self-test
Nominal operating time: 3 h

Characteristics

Circuit typeMaintained/standby mode
HAB6-80W Stest o. FM with battery 3h
ManufacturerRZB
HAN09-6287.000
GTIN4010319798884
Performance80W
LampsDischarge lamps
Nominal voltage230 to 240 V
Protection classI
RZB 09-6287.000 6-80W Stest o. FM m. Akku 3h emergency light module
RZB 09-6287.000 6-80W Stest o. FM m. Akku 3h emergency light module
