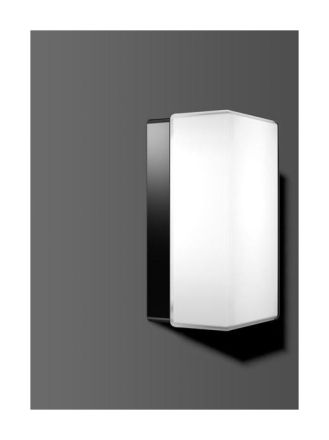

HABOpal Rectangle A60 60W E27 220x120x105
HAN21146.003
GTIN4010319019187
Covering the luminaire with thermal insulation material possibleYes
Connection typeScrew terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Rated ambient temperature according to IEC62722-2-1-25 to 25 °C
Operating deviceNot required
Suitable for computer workstations according to EN 12464-1Yes
Width120 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
VersionE27
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power46W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorBlack
Glow wire test according to IEC 60695-2-11960 °C - 30 s
Height/Depth105 mm
Power factor1
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLight bulb
Light emissionDirect/indirect
Light distributorWithout
Light distributionSymmetrical
Length220 mm
Max. system performance46W
With operating deviceNo
With motion detectorNo
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionYes
Number of poles2
Impact resistanceIK02
IP protection)IP43
Protection class (NEMA)Other
Protection classII
Voltage typeAC
Cover materialGlass opal
Housing materialPlastic
