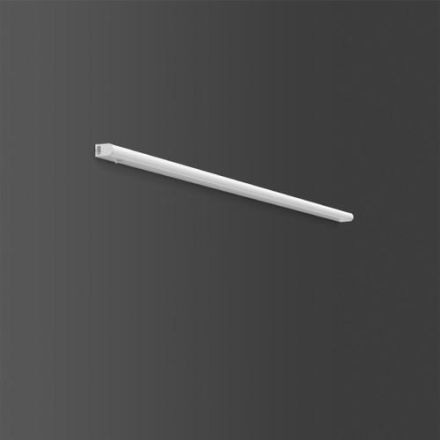

HABStrip Light 18W-3000K+4000K
HAN451159.002.2
GTIN4051859709633
Covering the luminaire with thermal insulation material possibleYes
Type of wiringWith through wiring
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated lifetime L70/B50 at 25 °C25000 hours
Rated luminous flux according to IEC 62722-2-11750lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width28 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000 to 4000 K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power17 W
Suitable for number of lamps1
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11750 °C - 30 s
Height/Depth37.50 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy103lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light distributorOther
Light distributionSymmetrical
Length1138 mm
Max. system performance17 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK02
IP protection)IP20
Protection class (NEMA)Other
Protection classII
Voltage typeAC
Cover materialPlastic transparent
Housing materialPlastic
