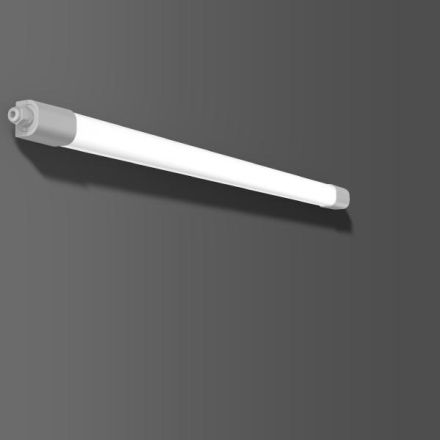

RZB 451212.009.1 Planox Eco Farm 18/36W 4000K 1369x61x50 LED wet room light bar

In stock
SKU: 536786
€84.70
Into a basketIn the basketGo

Overview

Ammonia resistance and cleaning distance: resistant to stable air containing ammonia. Cleaning distance greater than 10 cm. Rear light component for ceiling illumination. Color rendering Ra 80. Impact protection: IK08. LED service life 50,000 h (L80, B10). Luminaires with limited surface temperature in accordance with DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Operating range: -30°C to +50°C. High protection class IP 66. Color tolerance: 3-fold MacAdam (3 SDCM). The injection-molded diffusers are internally prismatic, UV-resistant and offer homogeneous light output. Flexible installation thanks to movable mounting brackets. Ideal for replacing luminaires. Standard through-wiring for additional luminaires (protection class I and II). Cable installation on both sides using a twist lock. Convenient cable entry via cable gland at both ends. Suitable for use in the food and drinks industry. Planox Eco Farm, suitable for operations with increased levels of dust and ammonia. Side panels made of gray plastic (PMMA). Diffuser made of opal plastic (PMMA). Operating device encapsulated, integrated and firmly connected to the diffuser and side panel. Convenient cable entry via cable gland and easy installation using twist locks on both sides. Ceiling mounting bracket made of stainless steel and triangle bracket for pendant mounting included in delivery. Luminaire with integrated 4-pin through-wiring for connecting additional luminaires together, also as a master-slave circuit. Wattage can be selected in 2 stages (replacement for 1 and 2-lamp luminaires) with internal switch. Energy efficiency class A++

Feature Value
Max. System power: 37 W
Rated luminous flux according to IEC 62722-2-1: 4950 lm
Suitable for number of lamps: 1
Length: 1369 mm
Width: 61 mm
Height/depth: 50 mm
Protection rating (IP): IP66
Protection class: II
Luminaire with limited surface temperature 'D-mark': yes
Nominal voltage: 220 to 240 V
Housing color: gray
Housing material: plastic
Color temperature: 4000 K
Impact resistance: IK07
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Rated service life L80/B10 at 25 °C: 50000 h
Suitable for wall mounting: yes
Voltage type: AC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -30 to 50 °C
Socket: other
Connection type: Plug-in terminal
With operating device: yes
Cover material: Opal plastic
Light distributor: without
Without dimming function: yes
Light emission: direct/indirect
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendant suspension: yes
Suitable for surface mounting: yes
Suitable for emergency lighting: yes
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With Air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Suitable for lamp power: 22 to 37 W
Luminaire luminous efficacy: 134 lm/W
Power factor: 0.91
Type of wiring: suitable for through wiring
Number of poles: 4
Conductor cross-section: 2.50 mm²

Characteristics

HABPlanox Eco Farm 18/36W 4000K 1369x61x50
ManufacturerRZB
HAN451212.009.1
GTIN4051859346869
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-14950lm
Rated ambient temperature according to IEC62722-2-1-30 to 50 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width61 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power22 to 37 W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorGray
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth50 mm
Power factor0.91
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markYes
Luminaire luminous efficacy134lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorWithout
Light distributionSymmetrical
Length1369 mm
Max. system performance37W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles4
Impact resistanceIK07
IP protection)IP66
Protection class (NEMA)Other
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
RZB 451212.009.1 Planox Eco Farm 18/36W 4000K 1369x61x50 LED wet room light bar
