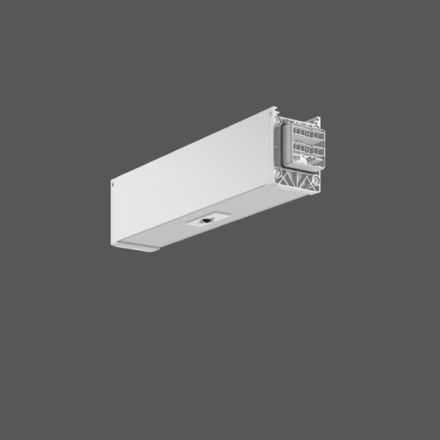

Module including passive infrared sensor (PIR) for detecting movement and brightness. System profile made of extruded aluminum profile, anodized. Cover made of aluminum, surface same as system profile. Simple, tool-free installation of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured with a mechanical connector. 14-pin LINEDO connector (5 x 2.5 mm / 9 x 1.5 mm) for additional applications in light management or for the integration of emergency lighting. Simple selection of phase setting from the outside thanks to the patented system. Presence detection via passive IR element. Presence detection range adjustable between 40° and 90° using the integrated shutter. Detection range: 6 m. Light sensor working range: 20-800lx (measured at the sensor). Function display with two-color LED. Installation height: 2-5m. Application example: Monitoring of low rooms and shelving units where a normal installation height is given. Please order feed module, connection and installation accessories separately.
