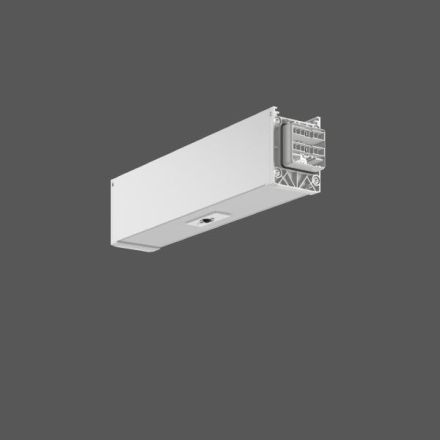

Module including passive infrared sensor (PIR) for detecting movement and brightness. System profile made of extruded aluminum profile, anodized. Cover made of aluminum, surface like system profile. Simple and tool-free installation of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured with a mechanical connector. 7-pin LINEDO plug (5 x 2.5 mm / 2 x 1.5 mm). Easy selection of phase setting from the outside thanks to patented system. Prefabricated connection to DALI line. Light and motion detector: housing made of non-flammable, halogen-free plastic (polycarbonate). Presence detection via passive IR element. Presence detection range adjustable between 40° and 90° via integrated shutter. Detection range: 6 m. Light sensor working range: 20-800lx (measured at the sensor). Function display with two-color LED. Installation height: 2-5m. Application example: Monitoring of low rooms and shelving units where a normal installation height is given. Please order feed module, connection and installation accessories separately.
