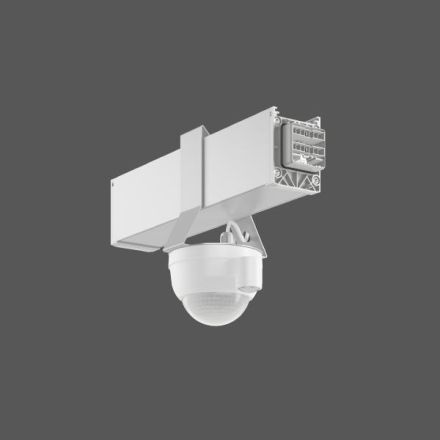

Module including passive infrared sensor (PIR) for detecting movement and brightness. System profile made of extruded aluminum profile, anodized. Cover made of aluminum, surface same as system profile. Simple and tool-free installation of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured with a mechanical connector. 14-pin LINEDO connector (5 x 2.5 mm / 9 x 1.5 mm) for additional applications in light management or for the integration of emergency lighting. Simple selection of phase setting from the outside thanks to the patented system. Pre-assembled connection to DALI line. Light and motion detector: DALI-2 sensor can be individually positioned 2.5 m along the length of the system profile. Housing made of non-flammable, halogen-free plastic (polycarbonate). Detection range: 30 x 19 m. Light sensor working range: 10 - 2500 lx. Installation height: 5 - 16 m. Application example: Monitoring of warehouses, high-bay warehouses where a large installation height is required. Please order feed module, connection and installation accessories separately.
