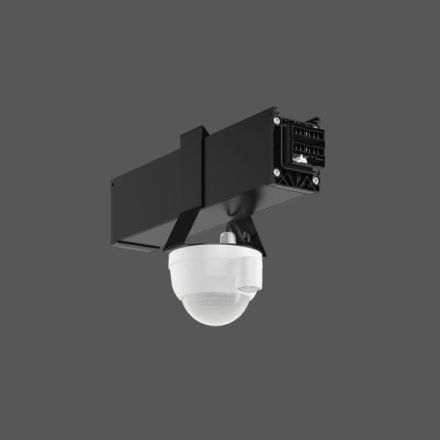

Module including passive infrared sensor (PIR) for detecting movement and brightness. System profile made of extruded aluminum profile, powder-coated. Cover made of aluminum, surface same as system profile. Simple, tool-free installation of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured with a mechanical connector. 7-pin LINEDO plug (5 x 2.5 mm / 2 x 1.5 mm). Easy selection of phase setting from the outside thanks to patented system. Pre-assembled connection to DALI line. Light and motion detector: DALI-2 sensor can be individually positioned 2.5 m along the length of the system profile. Housing made of non-flammable, halogen-free plastic (polycarbonate). Detection range: 30 x 19 m. Light sensor working range: 10 - 2500 lx. Installation height: 5 - 16 m. Application example: Monitoring of warehouses, high-bay warehouses where a large installation height is required. Please order feed module, connection and installation accessories separately.
