Catalog

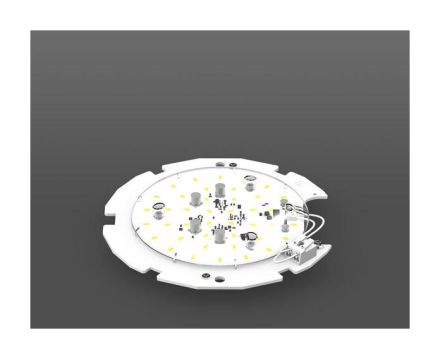

RZB 982173.002 m. 13.6W 3000K conversion kit

In stock
SKU: 529245
€81.29
Into a basketIn the basketGo

Overview

Conversion kits for luminaire insert: Module carrier made of powder-coated aluminum sheet. Sockets and connection terminals, if required, installed. Dimensions including LED lamps. Power specification corresponds to effective power. with box with lamp Protection type: IP20 Protection class: I Color: bright white Mounting type: luminaire installation : 230mm H: 26mm Lamp 1: LED replaceable /: 13, 50W,, : 3000K with: without Rated voltage (s): 220, 240 V Rated frequency (s): 50, 60Hz Fastening: with screws D4, LA: 170mm EEK lamp built-in: A+

Property Value
Lamp power: 12 W
Color temperature: 3000 K
Luminous flux: 1400 lm
Protection class (IP): IP20
Height: 26 mm
Color: white
Operating voltage: 220 to 240 V
Average nominal service life: 50000 h
Suitable for traffic information board signaling: no
Suitable for traffic lights: no
Suitable for variable message signs: no
Suitable for rail transport: no
Number of LEDs: 1
Diameter: 230 mm
Suitable for constant current: no
Suitable for general lighting: yes
Suitable for constant voltage: no
External operating device required: no
Voltage type: AC
Lamp voltage: 220 to 240 V
Light color according to EN 12464-1: warm white <3300 K

Characteristics

Suitable for constant currentNo
Suitable for constant voltageNo
Operating voltage220 to 240 V
HABM. 13.6W 3000K
ManufacturerRZB
HAN982173.002
GTIN4051859145882
Diameter230 mm
ColorWhite
Color temperature3000K
Height26 mm
Lamp power12W
Lamp voltage220 to 240 V
Luminous flux1400lm
Average nominal life50000 hours
IP protection)IP20
Voltage typeAC
