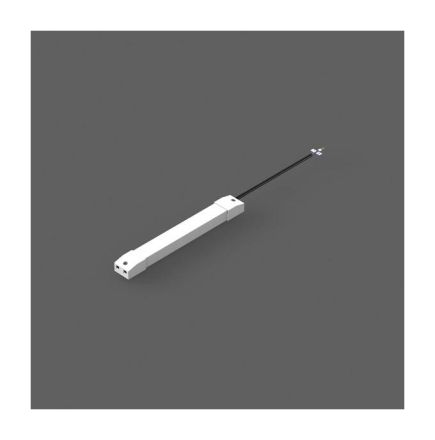

RZB 982234.002 Less is more for LED 60W LED control gear

RZB 982234.002 Less is more for LED 60W LED control gear

In stock

SKU: 529924

Price on request

€96.20

€0

Overview

Constant voltage converter Power converter: 60W, Nominal voltage (s): 220, 240 V Nominal frequency (s): 0Hz 50, 60Hz Inputs: Plug-in terminal Outputs: Terminal for LED L: 240mm W: 30mm H: 21mm Protection type: IP20 Protection class: II Number of luminaires B10: 11 Number of luminaires B16: 18 Number of luminaires C10: 19 Number of luminaires C16: 31

Property	Value
Output power:	60 W
Protection class (IP):	IP20
Output voltage:	15 to 24 V
Output current:	2500 mA
Protection class:	II
Length:	240 mm
Width:	30 mm
Height:	21 mm
Design:	static
Housing:	plastic housing
Suitable for outdoor use:	no
Suitable for constant voltage:	yes
Suitable for constant current:	no
Suitable for direct voltage (primary side):	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DSI:	no
Dimming DMX:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
