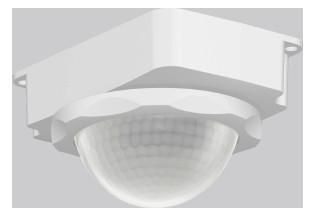

Long-range 360° passive infrared light and motion sensor (PIR) with radial presence and motion detection. Connection to the DALI bus via the Zhaga base (book 18 Ed.2). The DALI-2 multi-sensor supplies the sensor data to the controller via the wired DALI network. The power supply is via the DALI bus. Constant light control possible. Detection range and sensitivity adjustable via light management system. Housing made of non-flammable, halogen-free plastic (polycarbonate). For mounting heights of 2.8 - 14 m. The maximum diameter of the detection range is 36 m and can therefore monitor an area of up to 1000 m². The integrated light sensor has an operating range of 4 - 1000 lx. Application example: presence detection and constant light control for work and office areas. Only for use with LINEDO sensor module with Zhaga base without integrated power supply. Please order module separately (9503S7.00X.X00.010).
