Scharnberger & Hasenbein 35182 Single LED 10x25 20-28VAC/DC

In stock
SKU: 668051
€2.25
Into a basketIn the basketGo

Overview

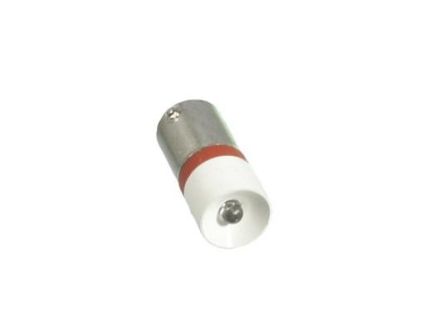

Single LED 10x25mm Ultra-bright 3mm LED, highly reflective plastic body (reflector) with color ring in luminous color. Integrated series resistor, types up to 60V with additional SI diode as 1-way rectification in AC operation. Beam angle 50°, center contact anode connection (+). In AC operation, the power consumption and brightness are reduced by approx. 50%. Energy efficiency class: not subject to labeling

PropertyValue
Xenon:no
Nominal current:12.2 mA
Socket:BA9s
Diameter:10 mm
Total length:25 mm
Color:yellow
Lamp shape:Tube, single-ended
Suitable for flashlights:no
Suitable for display purposes:yes
Halogen:no
Krypton:no
Lamp voltage:28 V
Average nominal life:50000 h
Lamp power:0.39 W
Technology:LED
Suitable for rotating beacon:no

Characteristics

TechnologyLED
Suitable for rotating beaconNo
HAB35182
HAN35182
GTIN4034451351820
Diameter10 mm
ColorYellow
Suitable for display purposesYes
Suitable for flashlightsNo
Overall length25 mm
HalogenNo
KryptonNo
Lamp shapeTube, single-ended
Lamp power0.39W
Lamp voltage28V
Average nominal life50000 hours
Rated current12.2mA
BaseBA9s
XenonNo
