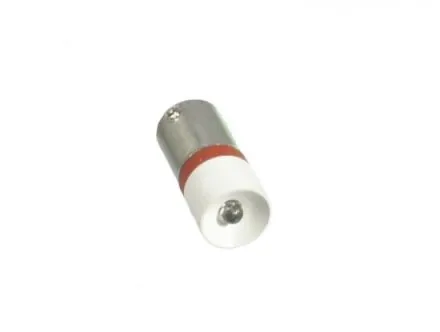

Scharnberger & Hasenbein 35348 Star LED 10x25 20-28VAC/DC

In stock
SKU: 667968
€4.13
Into a basketIn the basketGo

Overview

Single LED 10x25mm Ultra-bright 3 mm LED, highly reflective plastic body (reflector) with color ring in luminous color. Integrated series resistor, with additional SI diode as 1-way rectification for AC operation. Beam angle 50°, center contact anode connection (+). With AC operation, the power consumption and brightness are reduced by approx. 50%. Energy efficiency class: not subject to labeling

PropertyValue
Nominal current:15 mA
Nominal voltage:28 V
Color:white
Voltage type:AC/DC
Length:25 mm
Diameter:10 mm
Energy efficiency class:A+
Average nominal service life:25000 h
Power consumption:0.4 W
Luminous flux:0.17 lm
Weighted energy consumption in 1,000 hours:0.44 kWh
Beam angle:30 °

Characteristics

Power consumption0.4 W
HAB35348
HAN35348
GTIN4034451353480
Beam angle30°
Diameter10 mm
Energy efficiency classA+
ColorWhite
Weighted energy consumption in 1,000 hours0.44 kWh
Luminous flux0.17lm
Length25 mm
Average nominal life25000 hours
Nominal voltage28V
Rated current15mA
Voltage typeAC/DC
