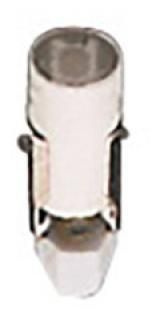

Scharnberger & Hasenbein 35690 4.25x15mm T4.5 20-28VAC/DC ws LED chip

In stock
SKU: 949235
€6.34
Into a basketIn the basketGo

Overview

Chip LED 4.25x15mm Special combination of reflector and diffuser lens. This achieves a radiation characteristic similar to a multi-chip LED. Plastic body (reflector) with color ring in luminous color. Integrated series resistor, additional SI diode as 1-way rectification for AC operation. Anode connection marked for anode (+). With AC operation, the power consumption and brightness are reduced by approx. 50%. Energy efficiency class: not subject to labeling

PropertyValue
Lamp voltage:24 V
Lamp power:0.32 W
Rated current:15 mA
Socket:T 4.5
Lamp shape:Tube, single-ended
Diameter:4.25 mm
Total length:22 mm
Color:white
Xenon:no
Suitable for Flashlights:no
Suitable for display purposes:yes
Halogen:no
Krypton:no
Average nominal life:60000 h
Technology:LED
Suitable for rotating beacon:no

Characteristics

TechnologyLED
Suitable for rotating beaconNo
HAB4.25x15mm T4.5 20-28VAC/DC white
HAN35690
GTIN4034451356900
Diameter4.25 mm
ColorWhite
Suitable for display purposesYes
Suitable for flashlightsNo
Overall length22 mm
HalogenNo
KryptonNo
Lamp shapeTube, single-ended
Lamp power0.32W
Lamp voltage24V
Average nominal life60000 hours
Rated current15mA
BaseT4.5
XenonNo
