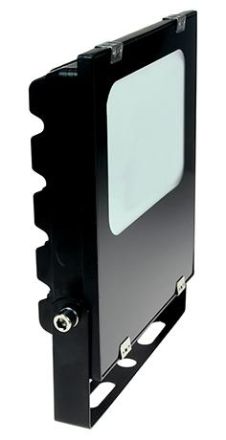

HAB10-30VDC 35W/ww diffused glass
HAN90392
GTIN4034451903920
Covering the luminaire with thermal insulation material possibleNo
Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C
Operating deviceNot required
Suitable for computer workstations according to EN 12464-1No
Width172 mm
Color consistency (McAdam ellipse)SDCM6
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for lamp power35W
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingYes
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingYes
Suitable for wall mountingYes
Housing colorBlack
Height/Depth48 mm
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
Luminaire luminous efficacy125lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux3850lm
Light distributorReflector
Light distributionSymmetrical
Length193 mm
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage10 to 30 V
Brushed surfaceNo
Surface protectionPlastic coated
Without dimming functionYes
ReflectorOther
Impact resistanceOther
IP protection)IP65
Protection class (NEMA)Other
Protection classIII
Voltage typeDC
System performance35W
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
