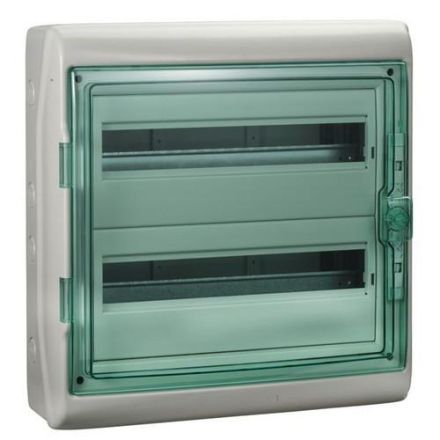

Schneider Electric 13434 small distribution board

In stock
SKU: 698923
€122.51
Into a basketIn the basketGo

Overview

Kaedra small distribution board. 2 horizontal rows with 18 modules each. Standard: EN 60439-3, protection class: IP 65, protection class against external mechanical stress IK 09, glow wire test: 650°C, color: housing RAL 7035, hinged lid: light green. Housing with PE/N terminals, several housings can be combined horizontally and vertically using M32 mounting brackets, depth of the DIN rail adjustable, center distance between 2 DIN rails can be set to 125, 150 or 175 mm (factory setting: 150 mm).

Property Value
Height: 460.0 mm
Width: 448.0 mm
Depth: 160.0 mm
Width in HP: 18.0
Rows: 2.0
Protection class (IP): IP65
Color: gray
Mounting type: Surface-mounted
With lock: no
Transparent cover/door: yes
Housing material: Plastic
RAL number: 7035.0
DIN rail: yes
Mounting option: yes
EMC version: no
With mounting plate: no
Type of cover: door
Cover design: closed
Inner depth: 88.0 mm
Type of closure: cylinder
Earthing terminal block: yes
Neutral conductor terminal block: yes
Signal-permeable door: yes

Characteristics

HAB13434
ManufacturerSchneider Electric
HAN13434
GTIN3303430134343
Cultivation optionYes
Type of coverDoor
Type of closureCylinder
Cover designClosed
Width448.0 mm
DIN railYes
EMC versionNo
ColorGray
Height460.0 mm
Internal depth88.0 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
RAL number7035.0
IP protection)IP65
Depth160.0 mm
Transparent lid/doorYes
Housing materialPlastic
