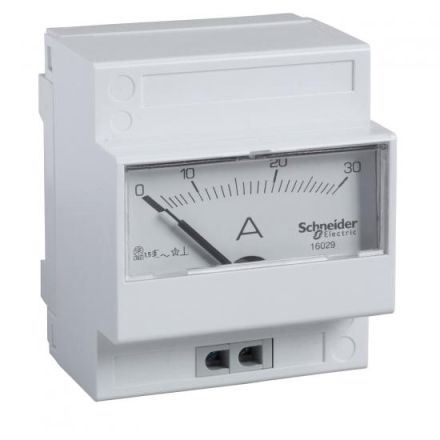

Schneider Electric 16029 Analog Ammeter

In stock

SKU: 697827

Price on request

€77.34

€0

Overview

Modular analogue ammeter AMP, 0-30A. Product range: Acti 9 - Device short name: iAMP - Product or component type: Ammeter - Technology type: ferromagnetic - Scale type: pseudo-linear scale over 90° - Mounting bracket: DIN rail.

< tr> < /tr>

Property	Value
Nominal end value of the scale:	30.0 A
Measuring range:	0.0 to 30.0 A
Transformer connection:	no
Accuracy class:	1.5
Power loss:	1.1 W
Voltage type:	AC
Overcurrent scale:	no< /td>
Calibrated:	no
Version:	DIN rail< /td>
Suitable for series installation:	yes
Width:	72.0 mm
Height:	90.0 mm
Width in pitch units:	4.0
Max. pointer deflection:	90.0 °
Measuring system:	other
Sliding pointer:	no
Scale illumination:	no
