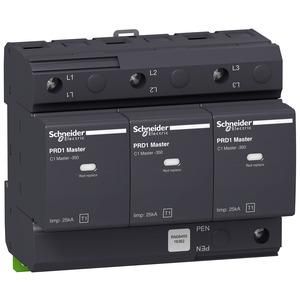

Schneider Electric 16362 TYP1 PRD1MASTER 3-pole lightning arrester

In stock
SKU: 687310
€667.82
Into a basketIn the basketGo

Overview

Lightning arrester TYPE 1 PRD1 Master 3P, Uc 350V. Product range: PRD1 Master - Product or component type: Lightning arrester with plug-in protection module - Abbreviation of the device: PRD1 Master - Composition of signal contacts: 1 SD (1 W) - Typ. of. Surge arrester: electrical distribution network - earthing system: TN-C.

Property Value
Protection level: 1, 5 kV
Nominal discharge current (8/20): 25 kA
Maximum continuous operating voltage AC: 350 V
Nominal voltage AC: 400 V
Mounting type: DIN rail TH35
Size: other
Signaling on the device: optical
With remote signaling contact: yes
Test class type 2: yes
Max. conductor cross-section flexible (fine-stranded): 35 mm
Max. Conductor cross-section rigid (single/multi-wire): 35 mm
Integrated backup fuse: yes
Protection class (IP): IP20
Network type DC: no
Network type IT: no
Network type TN: no
Network type TN-C: yes
Network type TN-CS: no
Network type TN-S: no
Network type TT: no
Network type other: no
Number of conductors (without earth): 3

Characteristics

Protection level1, 5 kV
With remote signaling contactYes
Network form TTNo
Network type TN-SNo
Test class type 2Yes
Network form TNNo
Network type TN-CYes
Network type TN-C-SNo
Network type DCNo
Integrated backup fuseYes
Network type ITNo
HAB16362 TYPE1 PRD1MASTER 3-pin
ManufacturerSchneider Electric
HAN16362
GTIN3606480060458
SizeOther
Highest continuous voltage AC350V
Mounting typeDIN rail TH35
Nominal voltage AC400V
Signaling on the deviceOptical
