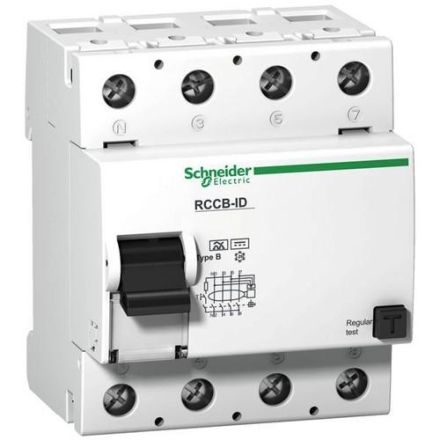

Schneider Electric 16766 4-pole 125/0.5A KL.B residual current circuit breaker all-current sensitive

In stock
SKU: 677912
€2,009.41
Into a basketIn the basketGo

Overview

Residual current circuit breaker ID, 4P, 125A, Type B, 500mA. Product or component type: Earth fault protection - Poles description: 4P - Neutral position: left - Network type: AC - Earth fault protection class: Class B.

Property Value
Rated voltage: 400.0 V
Current: 125.0 A
Leakage current: 0.5 A
Mounting type: DIN rail
Degree of protection (IP): IP20
Frequency: 50/60 Hz
Number of poles: 4.0
TE: 4.0
Selective type: no
Residual current type: B
Additional equipment possible: yes
Installation depth: 44.0 mm
Surge current strength: 3.0 kA
Short-time delayed type: no
Rated insulation voltage Ui: 440.0 V
Rated impulse withstand voltage Uimp: 4.0 kV
With locking device: yes
Ambient temperature during operation: -25.0 to 40.0 °C
Pollution level: 3.0
Connectable conductor cross-section, stranded: 1.5 to 35.0 mm²
Connectable conductor cross-section, solid: 1.5 to 50.0 mm²
Voltage type: AC
Explosion-proof: no

Characteristics

HAB16766 4-pole 125/0.5A KL.B
ManufacturerSchneider Electric
HAN16766
GTIN3303430167662
Connectable conductor cross-section solid1.5 to 50.0 mm²
Connectable conductor cross-section stranded1.5 to 35.0 mm²
Rated insulation voltage Ui440.0V
Rated voltage400.0V
Rated impulse withstand voltage Uimp4.0kV
Installation depth44.0 mm
Explosion-proofNo
Residual current typeB
Frequency50/60Hz
Short-time delayed typeNo
With locking deviceYes
Mounting typeDIN rail
Number of poles4.0
IP protection)IP20
Selective typeNo
Voltage typeAC
Surge current strength3.0kA
TE4.0
Ambient temperature during operation-25.0 to 40.0 °C
Degree of contamination3.0
Additional equipment possibleYes
