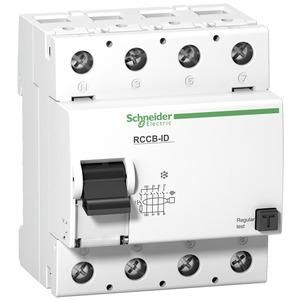

Schneider Electric 16927 4-pole 125/0.5A residual current device

In stock

SKU: 687690

Price on request

€684.24

€0

Overview

Residual current circuit breaker ID, 4P, 125A, Type A, 500mA. Product or component type: Earth fault protection - Poles description: 4P - Neutral position: left - Network type: AC.

Property	Value
Rated voltage:	400.0 V
Current:	125.0 A
Leakage current:	0.5 A
Mounting type:	DIN rail
Degree of protection (IP):	IP20
Frequency:	50/60 Hz
Number of poles:	4.0
TE:	4.0
Selective type:	no
Fault current type:	A
Additional equipment possible:	yes
Installation depth:	44.0 mm
Surge current strength:	0.25 kA
Short-term delayed type:	no
Rated insulation voltage Ui:	440.0 V
Rated impulse withstand voltage Uimp:	4.0 kV
With locking device:	yes
Ambient temperature during operation:	-25.0 to 40.0 °C
Pollution level:	3.0
Connectable conductor cross-section, stranded:	1.5 to 35.0 mm²
Connectable conductor cross-section, solid:	1.5 up to 50.0 mm²
Voltage type:	AC
Explosion-proof:	no
