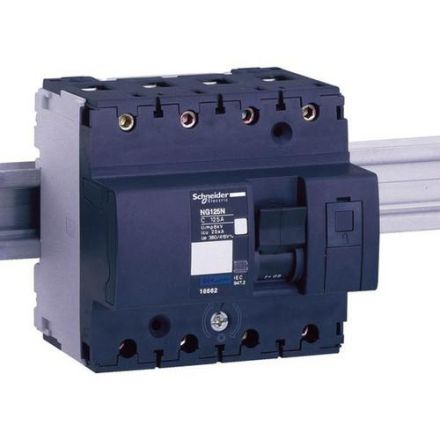

Schneider Electric 18661 circuit breaker

In stock
SKU: 699088
€573.34
Into a basketIn the basketGo

Overview

Circuit breaker NG125N, 4P, 125A, C-characteristic. Product range: NG125 - Range: Acti 9 - Product or component type: Circuit breaker - Device short name: NG125N - Network type: AC, DC - Trip unit technology: thermomagnetic - Interrupting capacity: 10 kA Icu according to EN/IEC 60947-2 - 500V AC 50/60 Hz, 20 kA Icu according to EN/IEC 60947-2 - 500V DC, 20 kA Icu according to EN/IEC 60947-2 - 440V AC 50/60 Hz, 25 kA Icu according to EN/IEC 60947-2 - 380-415V AC 50/60 Hz, 50 kA Icu according to EN/IEC 60947-2 - 220-240V AC 50/60 Hz.

Property Value
Tripping characteristic: C
Rated current: 125.0 A
Rated voltage: 400.0 V
Type of voltage: AC/DC
Frequency: 50.0 to 60.0 Hz
TE: 6.0
Number of poles (total): 4.0
Additional equipment possible: yes
Overvoltage category: 4.0
Installation depth: 47.0 mm
Protection class (IP): IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V: 50.0 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V: 25.0 kA
Pollution level: 3.0
Switching neutral conductor: yes
Number of protected poles: 4.0
Flush-mounted installation: no
Rated insulation voltage Ui: 690.0 V
Rated impulse withstand voltage Uimp: 8.0 kV
Ambient temperature during operation: -30.0 to 70.0 °C
Connectable conductor cross-section, stranded: 10.0 to 50.0 mm²
Connectable conductor cross-section, single-wire: 16.0 to 70.0 mm²
Explosion-proof: no

Characteristics

Flush-mounted installationNo
HAB18661
ManufacturerSchneider Electric
HAN18661
GTIN3303430186618
Connectable conductor cross-section solid16.0 to 70.0 mm²
Connectable conductor cross-section stranded10.0 to 50.0 mm²
Number of protected poles4.0
Trigger characteristicsC
Rated insulation voltage Ui690.0V
Rated switching capacity Icu according to IEC 60947-2 at 230 V50.0kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V25.0kA
Rated voltage400.0V
Rated impulse withstand voltage Uimp8.0kV
Rated current125.0A
Installation depth47.0 mm
Explosion-proofNo
Frequency50.0 to 60.0 Hz
Switching neutral conductorYes
Number of poles (total)4.0
IP protection)IP20
Voltage typeAC/DC
TE6.0
Ambient temperature during operation-30.0 to 70.0 °C
Degree of contamination3.0
Additional equipment possibleYes
Overvoltage category4.0
