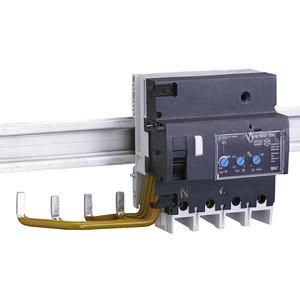

Schneider Electric 19049 FI block

In stock

SKU: 698730

Price on request

€680.13

€0

Overview

Residual current block Vigi NG125, 4P, 125A, 300-3000mA, Type A. Product or component type: Earth fault auxiliary block - Device short name: Vigi NG125 - Poles description: 4P - Network type: AC - Network frequency: 50/60 Hz - Earth fault sensitivity: 1000 mA, 300 mA, 3000 mA, 500 mA - Earth fault protection time delay: instantaneous/selective/delayed - Earth fault protection class: Class A.

Property	Value
Max. Delay time:	0.0 ms
Nominal voltage:	230.0 to 415.0 V
Delay time adjustable:	yes
Rated residual current adjustable:	yes
Nominal current:	125.0 A
Residual current type:	A
Number of poles:	4.0
Rated residual current:	0.3 to 3.0 A
Surge current strength:	5.0 kA
Frequency:	50/60 Hz
Rated insulation voltage Ui:	690.0 V
Rated impulse voltage strength Uimp:	8.0 kV
Connectable conductor cross-section, single-wire:	16.0 to 70.0 mm²
Connectable conductor cross-section, stranded:	10.0 to 50.0 mm²
False trigger protection:	no
With locking device:	yes
Protection class (IP):	IP20
Pollution level:	3.0
Ambient temperature during operation:	25.0 to 60.0 °C
