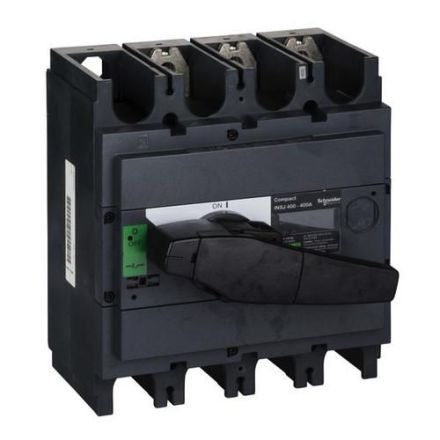

Schneider Electric 31136 INSJ 400 - 400A 3P load disconnector

Schneider Electric 31136 INSJ 400 - 400A 3P load disconnector

In stock

SKU: 683532

Price on request

€601.98

€0

Overview

Disconnector, Interpact INSJ400, 3-pole, 400A. Series: Compact - Disconnector name: Interpact INSJ400 - Description of poles: 3P - Network connection: AC - Network frequency: 50/60 Hz - Nominal short-circuit breaking capacity. Icm: 50 kA 600 V AC 50/60 Hz with 400 A fuses class T or RK, 100 kA 480 V AC 50/60 Hz protected by circuit breaker NSJ400 - 400A, 150 kA 240 V AC 50/60 Hz protected by circuit breaker NSJ400 - 400A, 20 kA 600 V AC 50/60 Hz protected by any protective device, 25 kA 600 V AC 50/60 Hz protected by circuit breaker NSJ400 - 400A - Plus contact indication: yes.

Property	Value
Number of poles:	3.0
Number of auxiliary contacts as Normally closed:	0.0
Number of auxiliary contacts as normally open:	0.0
Number of auxiliary contacts as changeover contacts:	4.0
Rated continuous current Iu:	400.0 A
Max. Rated operating voltage Ue at AC:	600.0 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP40
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	long rotary handle
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Version as a safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as a reversing switch:	no
Color of the actuating element:	black
Rated operating voltage:	0.0 to 600.0 V
Number of switches:	1.0
