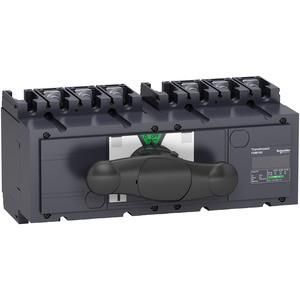

Schneider Electric 31144 INS 250-160A 3P transfer switch

Schneider Electric 31144 INS 250-160A 3P transfer switch

In stock

SKU: 683537

Price on request

€671.44

€0

Overview

Manual source switch, Interpact INS250, 3p, 160A. Product series: INS250 - Series: Compact - Device abbreviation: INS250 - Description of poles: 3P - Network connection: AC, DC - Network frequency: 50/60 Hz - Mounting variant: fixed - Connection on the top: front - Connection on the bottom: front - Plus contact indicator: yes - Nominal short-circuit breaking capacity. Icm: 330 kA 690 V AC 50/60 Hz with upstream protective disconnector, 30 kA 690 V AC 50/60 Hz disconnector alone.

Property	Value
Design:	On/off switch
Number of poles:	3.0
Rated continuous current Iu:	160.0 A
Complete device in housing:	yes
With zero setting:	yes
Design of the Actuating element:	long rotary handle
Connection type main circuit:	screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	no
Suitable for distribution board installation:	no
Suitable for floor mounting:	no
Protection class (IP), front:	IP40
Number of auxiliary contacts as normally closed contacts:	0.0
Number of auxiliary contacts as changeover contacts:	0.0
Number of auxiliary contacts as normally open contacts:	0.0
With return to zero position:	no
