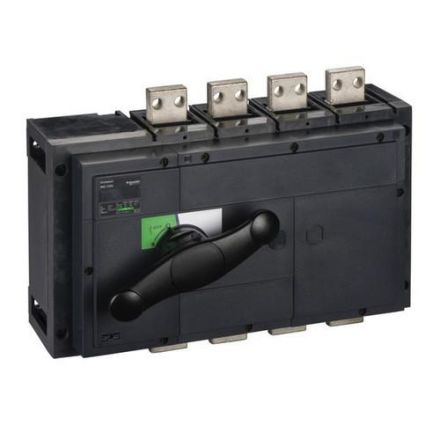

Schneider Electric 31335 INS1250 4P with black rotary actuator switch disconnector

Schneider Electric 31335 INS1250 4P with black rotary actuator switch disconnector

In stock

SKU: 683581

Price on request

€2,163.54

€0

Overview

Interpact INS1250, 4p, 1250A cast encapsulated circuit breaker. Series: Compact - Product name: INS1250 - Product or component type: Load break switch - Description of poles: 4P - Network connection: AC, DC - Network frequency: 50/60 Hz - Rated operating current Ie: DC-21A : 1250 A DC 250 V 4 poles in series, AC-22A : 1250 A AC 50/60 Hz 500/525 V, AC-21A : 1250 A AC 50/60 Hz 220/240 V, AC-22A : 1250 A AC 50/60 Hz 380/415 V, DC- 23A : 1250 A DC 125 V 2 poles in series, AC-21A : 1250 A AC 50/60 Hz 500/525 V, AC-22A : 1250 A AC 50/60 Hz 440/480 V, DC-22A : 1250 A DC 250 V 4 poles in series, AC-23A : 1250 A AC 50/60 Hz 440/480 V, DC-23A : 1250 A DC 250 V 4 poles in series, AC-23A : 1250 A AC 50/60 Hz 220/240 V, DC-22A : 1250 A DC 125 V 2 poles in series, AC-23A : 1250 A AC 50/60 Hz 500/525 V , AC-22A: 1250A AC 50/60Hz 660/690V, AC-21A: 1250A AC 50/60Hz 380/415V, AC-22A : 1250A AC 50/60Hz 480V NEMA, AC-21A : 1250A AC 50/60Hz 440/480V, AC-23A : 1250A AC 50/60Hz 380/415 V, AC-21A : 1250 A AC 50/60 Hz 660/690 V, AC-22A : 1250 A AC 50/60 Hz 220/240 V, AC-21A : 1250 A AC 50/60 Hz 480 V NEMA, AC -23A: 1250A AC 50/60Hz 480V NEMA, AC-23A: 1250A AC 50/60Hz 660/690 V, DC-21A : 1250 A DC 125 V 2 poles in series - nominal short-circuit breaking capacity. Icm: 75 kA 690 V AC 50/60 Hz with upstream protective disconnector, 75 kA 690 V AC 50/60 Hz disconnector alone - Rated operating voltage Ue: 690 V AC 50/60 Hz, 250 V DC - Plus contact indicator: yes - visible break: no.

< td>Rated operating voltage:

Property	Value
Number of poles:	4.0
Operating power:	710.0 kW
Number of auxiliary contacts as normally closed:	0.0
Number of auxiliary contacts as normally open:	0.0
Number of auxiliary contacts as changeover contacts:	4.0
Rated continuous current Iu:< /td>	1250.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Emergency stop device version:	no
Protection class (IP), front:	IP40
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the operating element:	long rotary handle
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance -/Repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Execution as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	50.0 kA
Color of the actuating element:	black
0.0 to 690.0 V
Rated continuous current at AC-21, 400 V:	1250.0 A
Number of switches:	1.0
Rated continuous current at AC-23 , 400 V:	1250.0 A
