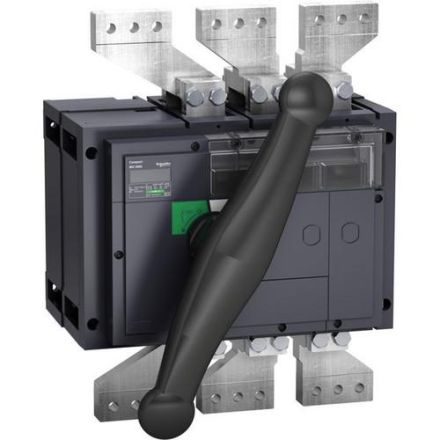

Schneider Electric 31366 Interpact INV2000 3P circuit breaker

Schneider Electric 31366 Interpact INV2000 3P circuit breaker

In stock

SKU: 683606

Price on request

€3,436.68

€0

Overview

Disconnector with visible break, Interpact INV2000, 3p, 2000A. Series: Compact - Product name: INV2000 - Product or component type: Load disconnector - Description of poles: 3P - Network connection: DC, AC - Network frequency: 50/60 Hz - Rated operating current Ie: AC-21B : 2000 A AC 50/60 Hz 660/690 V, DC-21B : 2000 A DC 125 V 2 poles in series, AC-21B : 2000 A AC 50/60 Hz 220/240 V, AC-22B : 2000 A AC 50/60 Hz 220/240 V, AC-22B : 2000 A AC 50/60 Hz 500/525 V, AC-22B : 2000 A AC 50/60 Hz 380/415 V, AC-22B : 2000 A AC 50/60 Hz 480 V NEMA, AC-21B : 2000 A AC 50/60 Hz 380/415 V, AC-22B : 2000 A AC 50/60 Hz 660/690 V, AC-21B : 2000 A AC 50/60 Hz 480 V NEMA, AC-21B : 2 000 A AC 50/60 Hz 440/480 V, AC-22B: 2000 A AC 50/60 Hz 440/480 V, DC-22B: 2000 A DC 125 V 2 poles in series, AC-21B: 2000 A AC 50/60 Hz 500/525 V - nominal short-circuit switching edge. Icm: 105 kA 690 V AC 50/60 Hz with upstream protective disconnector, 105 kA 690 V AC 50/60 Hz disconnector alone - rated operating voltage Ue: 690 V AC 50/60 Hz, 125 V DC - plus contact indication: yes - visible break: yes.

Property	Value
Number of poles:	3.0
Number of auxiliary contacts as normally closed:	0.0
Number of auxiliary contacts as normally open:	0.0
Number of auxiliary contacts as Changeover contact:	4.0
Rated continuous current Iu:	2000.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP40
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	long rotary handle
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Version as a safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as a reversing switch:	no
Rated short-time withstand current Icw:	50.0 kA
Color of the actuating element:	black
Rated operating voltage:	0.0 to 690.0 V
Rated continuous current at AC-21, 400 V:	2000.0 A
Number of switches:	1.0
