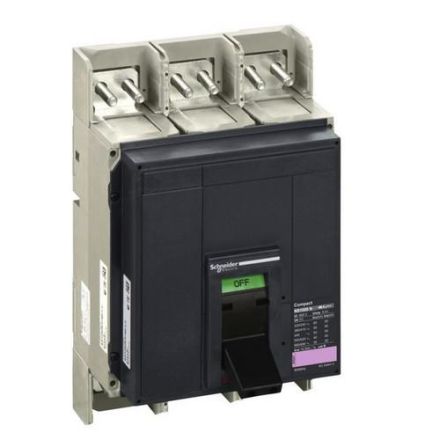

Schneider Electric 33240 NS 1000N 3P fixed installation manual operation circuit breaker

Schneider Electric 33240 NS 1000N 3P fixed installation manual operation circuit breaker

In stock

SKU: 683656

Price on request

€2,807.75

€0

Overview

Compact NS1000N, 3 P, 1000A, max. breaking capacity 50kA. Product series: NS630b...1600 - Product or component type: Base frame - Short name of the device: Compact NS1000N - Circuit breaker designation: Compact NS1000N - Network connection: AC - Circuit breaker performance index: N - Usage category: Category B.

Property	Value
Rated continuous current Iu:	1000.0 A
Type of connection main circuit:	Bolt connection
Number of poles:	3.0
Auxiliary contact:	0.0
Opener Auxiliary circuit:	0.0
Device design:	Built-in device, fixed installation technology
Position of the connection for main circuit:	front
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	50.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Toggle lever
With integrated undervoltage release:	no
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	no
With tripped indicator:	no
Number of auxiliary contacts as changeover contacts:	0.0
Complete device with protection unit:	no
DIN rail mounting optional:	no
