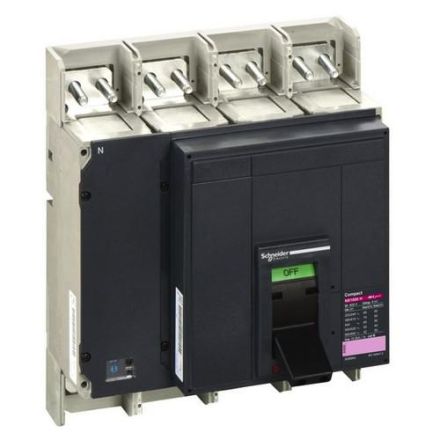

Schneider Electric 33245 Compact NS1000 basic housing TYPE H 4P load-break switch

Schneider Electric 33245 Compact NS1000 basic housing TYPE H 4P load-break switch

In stock

SKU: 683660

Price on request

€4,437.41

€0

Overview

Compact NS1000H, 4 P, 1000A, max. breaking capacity 70kA. Product series: NS630b...1600 - Product or component type: Base frame - Device short name: Compact NS1000H - Circuit breaker designation: Compact NS1000H - Neutral position: left - Network connection: AC - Circuit breaker performance index: H - Usage category: Category B.

Property	Value
Rated continuous current Iu:	1000.0 A
Type of connection main circuit:	Bolt connection
Number of poles:	4.0
Auxiliary contact:	0.0
Opener auxiliary circuit:	0.0
Device design:	Built-in device, fixed installation technology
Position of the connection for the main circuit:	front
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	70.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Toggle lever
With integrated undervoltage release:	no
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	no
With tripped indicator:	no
Number of auxiliary contacts as changeover contacts:	0.0
Complete device with protection unit:	no
DIN rail mounting optional:	no
