Number of auxiliary contacts as changeover contacts0.0

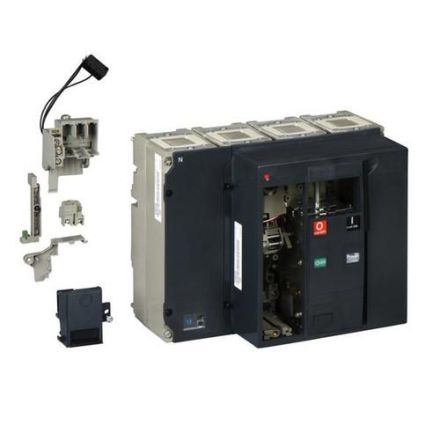

HAB33284 NS800 N 4P basic housing motor drive
HAN33284
GTIN3303430332848
Connection type main circuitBolt connection
Design of the actuating elementPush button
Rated continuous current Iu800.0A
Rated voltage690.0V
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalNo
Integrated earth fault protectionNo
Complete device with protection unitNo
With trip detectorNo
With integrated undervoltage releaseNo
Motor drive integratedYes
Motor drive optionalNo
Number of poles4.0
Position of the connection for main circuitIn front
IP protection)IP30
