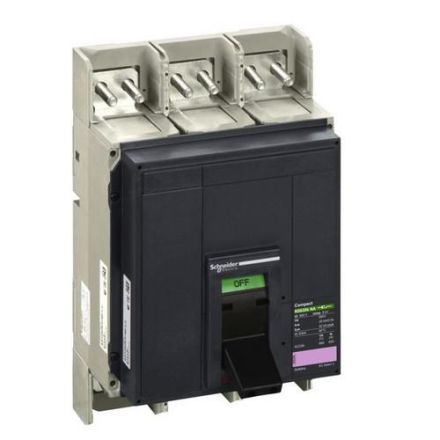

This is a Compact NS630b-1600, 800A, 70kA@415 VAC, 3-pole base frame.
| Feature | Value |
| Rated continuous current Iu: | 800.0 A |
| Connection type main circuit: | Bolt connection |
| Number of poles: | 3.0 |
| Auxiliary normally open contact: | 0.0 |
| Auxiliary normally closed contact: | 0.0 |
| Device design: | Built-in device, plug-in technology |
| Position of the connection for the main circuit: | front |
| Protection class (IP): | IP30 |
| Rated voltage: | 690.0 V |
| Icu at 400V: | 70.0 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | Toggle lever |
| With integrated Undervoltage release: | no |
| Integrated earth fault protection: | no |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| With trip detector: | no |
| Number of auxiliary contacts as changeover contacts: | 0.0 |
| Complete device with protection unit: | no |
| DIN rail mounting optional: | no |
