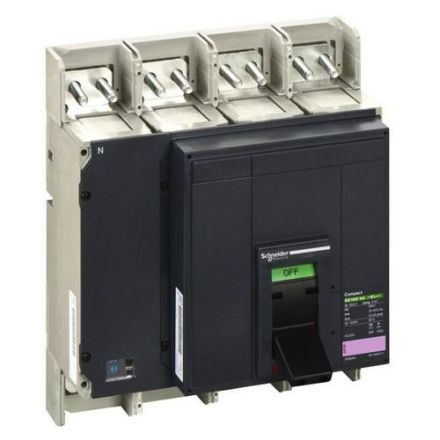

Schneider Electric 33429 NS 1600 NA 4P circuit breaker

Schneider Electric 33429 NS 1600 NA 4P circuit breaker

In stock

SKU: 683757

Price on request

€4,576.97

€0

Overview

Load disconnector. Compact NS1600 NA, 4P, 1600A/690V AC rocker arm. Product series: NS630b...1600 - Series: Compact - Device short name: Compact NS1600 NA - Product or component type: Load disconnector - Device application: Distribution - Description of poles: 4P - Network connection: AC - Line switch performance index: NA.

< td>Rated operating voltage:

Property	Value
Number of poles:	4.0
Number of auxiliary contacts as normally closed:	0.0
Number of auxiliary contacts as normally open:	0.0
Number of auxiliary contacts as changeover contacts:	5.0
Rated continuous current Iu:	1600.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Emergency stop device version:	no
Protection class (IP), front:	IP40
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the operating element:	Toggle< /td>
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance -/Repair switch:	yes
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Execution as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	25.0 kA
Color of the actuating element:	black
220.0 to 690.0 V
Number of switches:	1.0
Rated continuous current at AC-23, 400 V:	1600.0 A
