Number of auxiliary contacts as changeover contacts5.0

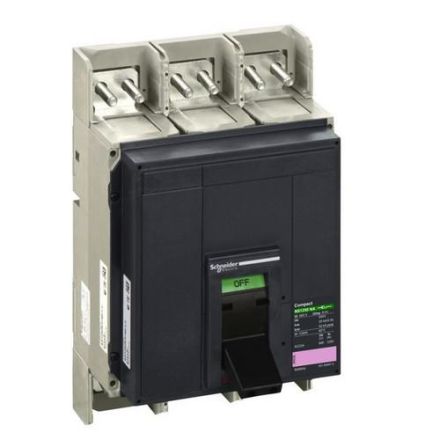

HAB33456 NS1250 NA 3P Motor drive
HAN33456
GTIN3303430334569
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open0.0
Number of auxiliary contacts as normally closed0.0
Number of switches1.0
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementGag
Rated operating voltage220.0 to 690.0 V
Rated continuous current Iu1250.0A
Rated continuous current at AC-23, 400 V1250.0A
Rated short-time withstand current Icw25.0kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Device typeBuilt-in device slide-in technology
Max. rated operating voltage Ue at AC690.0V
Motor drive integratedYes
Motor drive optionalNo
Number of poles3.0
Protection class (IP), frontIP40
Voltage release optionalYes
LockableYes
