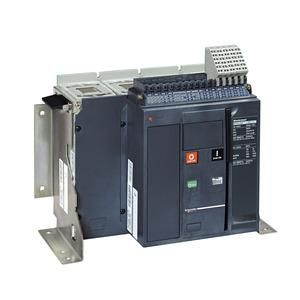

Schneider Electric 47135 NT10H14P fixed installation basic switch

In stock

SKU: 683918

Price on request

€3,579.11

€0

Overview

Masterpact NT10H1, 4 P, 1000A, max. breaking capacity 42kA. Product range: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT10 - Circuit breaker name: Masterpact NT10 - Neutral position: left - Network connection: AC - Circuit breaker performance index: H1 - Usage category: Category B.

< tr> < tr>

Property	Value
Rated continuous current Iu:	1000.0 A
Connection type main circuit:	Rail connection
Number of poles:	4.0
Auxiliary contact:	0.0
Opener Auxiliary circuit:	0.0
Device type:	Built-in device, fixed installation technology
Position of the connection for the main circuit:	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	42.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Integrated motor drive:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
