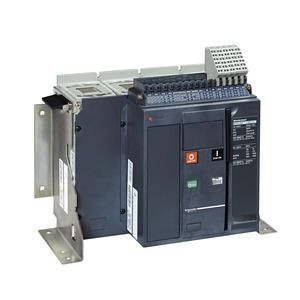

Schneider Electric 47147 NT 12 H2 4P fixed installation basic switch

In stock

SKU: 683924

Price on request

€4,510.52

€0

Overview

Base frame, Masterpact NT12H2, 1250A, 4p, fixed. Product series: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT12 - Circuit breaker name: Masterpact NT12 - Neutral position: left - Network connection: AC - Circuit breaker performance index: H2 - Usage category: Category B.

Property	Value
Rated continuous current Iu:	1250.0 A
Connection type main circuit:	Busbar connection
Number of poles:	4.0
Auxiliary contact:	0.0
Opener Auxiliary circuit:	0.0
Device design:	Built-in device, fixed installation technology
Position of the connection for main circuit:	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	50.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
