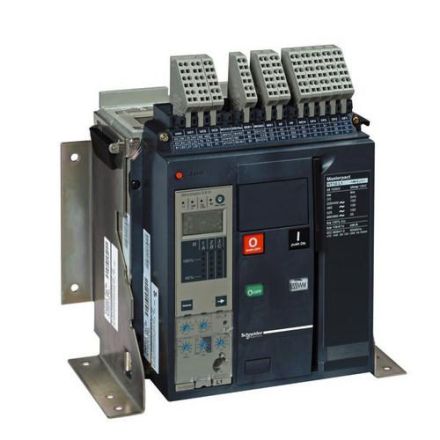

Schneider Electric 47150 NT16H13P fixed installation basic switch

In stock
SKU: 683925
€5,378.62
Into a basketIn the basketGo

Overview

Masterpact NT16H1, 3 P, 1600A, max. breaking capacity 42kA. Product series: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT16 - Circuit breaker name: Masterpact NT16 - Network connection: AC - Circuit breaker performance index: H1 - Usage category: Category B.

< td>Connection type main circuit:
Property Value
Rated continuous current Iu: 1600.0 A
Rail connection
Number of poles: 3.0
Normally open auxiliary circuit: 0.0
Normally open auxiliary circuit: 0.0
Device design: Built-in device, fixed installation technology
Position of the connection for the main circuit:< /td> rear
Protection class (IP): IP30
Rated voltage: 690.0 V
Icu at 400V: 42.0 kA
Suitable for DIN rail mounting: no
Design of the actuating element: Push button
Integrated earth fault protection: no
Integrated motor drive: no
Motor drive optional: yes
With trip detector: no
Number of auxiliary contacts as changeover contacts: 5.0

Characteristics

Number of auxiliary contacts as changeover contacts5.0
HAB47150 NT16H13P fixed installation
ManufacturerSchneider Electric
HAN47150
GTIN3303430471509
Connection type main circuitRail connection
Design of the actuating elementPush button
Rated continuous current Iu1600.0A
Rated voltage690.0V
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
Integrated earth fault protectionNo
With trip detectorNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles3.0
Position of the connection for main circuitRear
IP protection)IP30
Schneider Electric 47150 NT16H13P fixed installation basic switch
