Schneider Electric 47211 NT 08 H2 3P plug-in basic switch

In stock

SKU: 683946

Price on request

€2,423.69

€0

Overview

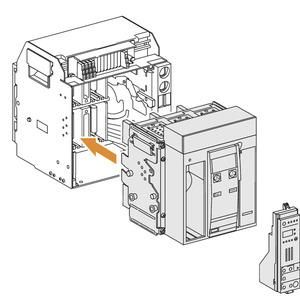

Base frame, Masterpact NT08H2, 800A, 3p, pull-out. Product series: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT08 - Circuit breaker designation: Masterpact NT08 - Network connection: AC - Circuit breaker performance index: H2 - Usage category: Category B.

Property	Value
Rated continuous current Iu:	800.0 A
Type of connection main circuit:	Rail connection
Number of poles:	3.0
Auxiliary contact make:	0.0
Auxiliary contact break:	0.0
Device design:	Built-in device, slide-out technology
Position of the connection for the main circuit:	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	50.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
