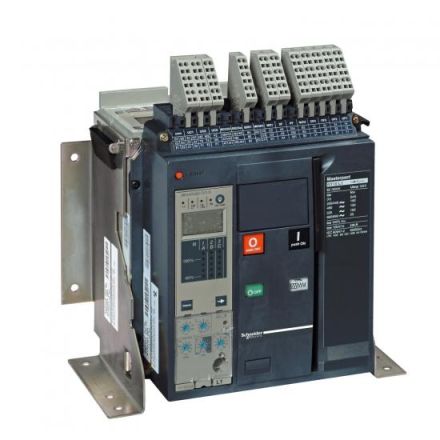

Schneider Electric 47212 NT08L13P plug-in basic switch

In stock

SKU: 683947

Price on request

€3,843.67

€0

Overview

Masterpact NT08L1, 3 P, 800A, max. switching off capacity 150kA. Product series: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT08 - Circuit breaker name: Masterpact NT08 - Network connection: AC - Circuit breaker performance index: L1 - Usage category: Category A.

< td>Connection type main circuit:

Property	Value
Rated continuous current Iu:	800.0 A
Rail connection
Number of poles:	3.0
Normally open auxiliary circuit:	0.0
Normally open auxiliary circuit:	0.0
Device design:	Built-in device, plug-in technology
Position of the connection for the main circuit:< /td>	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	150.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Integrated motor drive:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
