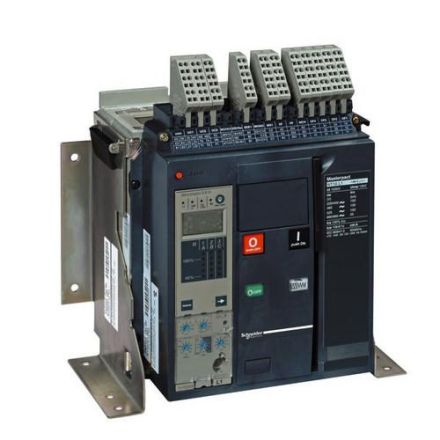

Schneider Electric 47220 NT10H13P plug-in basic switch

In stock

SKU: 683950

Price on request

€2,428.21

€0

Overview

Masterpact NT10H1, 3 P, 1000A, max. breaking capacity 42kA. Product series: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT10 - Circuit breaker name: Masterpact NT10 - Network connection: AC - Circuit breaker performance index: H1 - Usage category: Category B.

< td>Connection type main circuit:

Property	Value
Rated continuous current Iu:	1000.0 A
Rail connection
Number of poles:	3.0
Normally open auxiliary circuit:	0.0
Normally open auxiliary circuit:	0.0
Device design:	Built-in device, plug-in technology
Position of the connection for the main circuit:< /td>	rear
Protection class (IP):	IP30
Rated voltage:	690.0 V
Icu at 400V:	42.0 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Push button
Integrated earth fault protection:	no
Integrated motor drive:	no
Motor drive optional:	yes
With trip detector:	no
Number of auxiliary contacts as changeover contacts:	5.0
