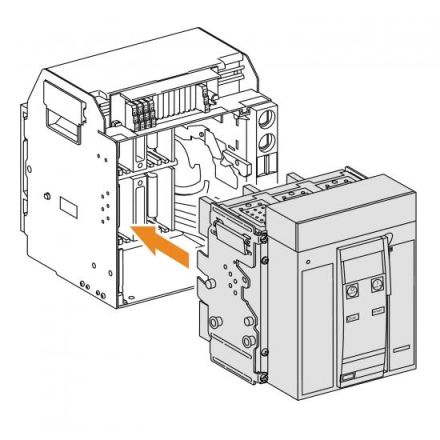

Schneider Electric 47251 NT08HA4P plug-in basic switch

In stock
SKU: 683967
€4,329.80
Into a basketIn the basketGo

Overview

Masterpact NT08HA disconnector, 4p, 800A, 690 V, withdrawable. Series: Masterpact - Product or component type: Load disconnector - Device abbreviation: Masterpact NT08 - Disconnector name: Masterpact NT08 - Description of poles: 4P - Network connection: AC - Network frequency: 50/60 Hz - Line break performance index: HA - Plus contact indication: yes - Visible breakage: no.

Property Value
Number of poles: 4.0
Rated uninterrupted current Iu: 800.0 A
Max. Rated operating voltage Ue at AC: 690.0 V
Design as EMERGENCY STOP device: no
Protection class (IP), front: IP30
Connection type main circuit: Screw connection
Device design: Built-in device, plug-in technology
Design of the actuating element: Push button
Suitable for floor mounting: yes
Conditional rated short-circuit current Iq: 35.0 kA
Suitable for front mounting 4-hole: no
Version as maintenance/repair switch: no
Voltage release optional: yes
Suitable for front mounting central: no
Suitable for intermediate installation: no
Suitable for distribution board installation: no
Version as main switch: no
Designed as safety switch: no
Motor drive optional: yes
Lockable: yes

Characteristics

HAB47251 NT08HA4P slot
ManufacturerSchneider Electric
HAN47251
GTIN3303430472513
Connection type main circuitScrew connection
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Design of the actuating elementPush button
Conditional rated short-circuit current Iq35.0kA
Rated continuous current Iu800.0A
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device slide-in technology
Max. rated operating voltage Ue at AC690.0V
Motor drive optionalYes
Number of poles4.0
Protection class (IP), frontIP30
Voltage release optionalYes
LockableYes
