Schneider Electric 47255 NT12HA4P plug-in basic switch

Schneider Electric 47255 NT12HA4P plug-in basic switch

In stock

SKU: 683971

Price on request

€5,458.31

€0

Overview

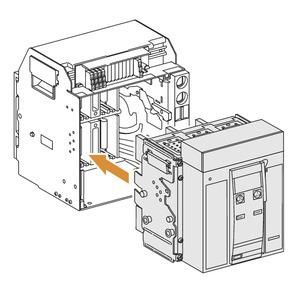

Masterpact NT12HA disconnector, 4p, 1250A, 690 V, withdrawable unit. Series: Masterpact - Product or component type: Load disconnector - Device abbreviation: Masterpact NT12 - Disconnector name: Masterpact NT12 - Description of poles: 4P - Network connection: AC - Network frequency: 50/60 Hz - Line break performance index: HA - Plus contact indication: yes - Visible breakage: no.

Property	Value
Number of poles:	4.0
Rated uninterrupted current Iu:	1250.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP30
Connection type main circuit:	Screw connection
Device design:	Built-in device, plug-in technology
Design of the actuating element:	Push button
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	35.0 kA
Integrated motor drive:	no
Suitable for 4-hole front mounting:	no
Version as maintenance/repair switch:	no
Voltage release optional:	yes
Suitable for central front mounting:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	no
Version as safety switch:	no
Motor drive optional:	yes
Lockable:	yes
Version as reversing switch:	yes
Rated short-time withstand current Icw:	36.0 kA
Color of the actuating element:	black
Rated operating voltage:	690.0 V
Number of switches:	1.0
